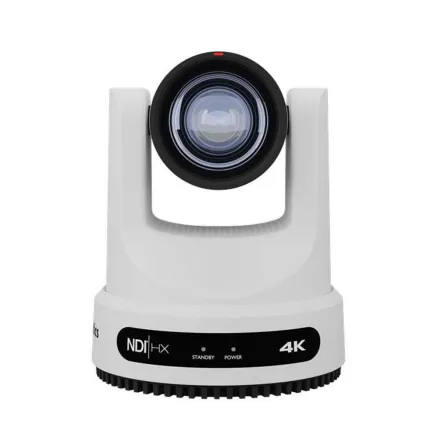

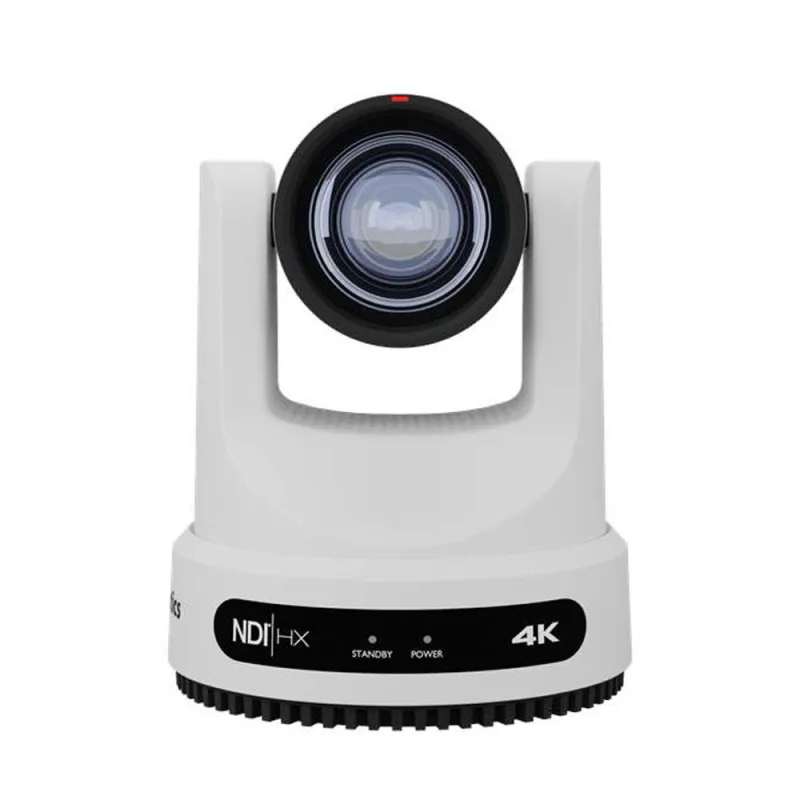

PTZOptics Move 4K, 20X Optical Zoom, WHITE PT20X-4K-WH-G3

PTZOptics Move 4K Series

The PTZOptics Move 4K series redefines PTZ cameras with precise auto-tracking and resolutions up to 4K60fps (1080p 60fps via 3G-SDI). It offers various outputs including USB, HDMI, SDI, and NDIHX.

Key Features

• Built-In Auto-Tracking
• Advanced White Balance Modes
• Wide Dynamic Range
• Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 720p-60/50/30/25
• 3D Noise Reduction
• Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97
• SRT Support

Enhanced User Experience

The Move 4K series features improved hardware and software for better low-light performance, PoE capabilities, and a built-in tally light. It supports HD and Full HD resolutions, ensuring compatibility with older systems.

Performance and Versatility

Each Move 4K camera includes SDI, HDMI, USB, and IP output for easy deployment. Available with 12x, 20x, and 30x optical zoom, these cameras are designed for flexibility.

Installation and Control

Mount the Move 4K in various angles using PTZOptics brackets, featuring automatic video inversion for easy setup. The updated Web UI allows for PTZ control and access to auto-tracking features, compatible with production software like OBS and vMix.

Specifications

• UltraHD 4K (3840x2160p) up to 60 FPS
• 20X optical zoom with a 60.7 horizontal field of view
• Low light performance with Wide Dynamic Range
• USB 2.0, HDMI 2.0, 3G-SDI, NDIHX support
• PoE or 12VDC power supply
• Built-in tally light

Camera & Lens

• Video Sensor: 1/2.5 inch UHD CMOS, 8.51M effective pixels
• Field of View: Horizontal 6.9 (tele) to 72.5 (wide)
• Min Lux: 0.5 Lux (F1.8, AGC ON)

Communication Interface

• RS232 and RS485 control protocols
• Max distance for RS232: 98.5ft / 30m
• Max distance for RS485: 3,937ft / 1200m
