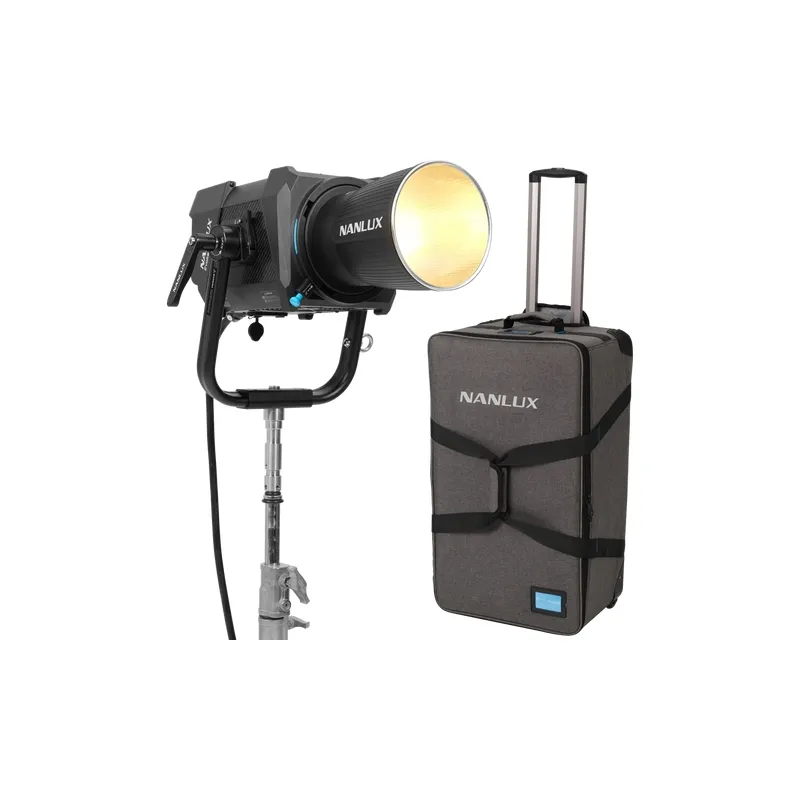

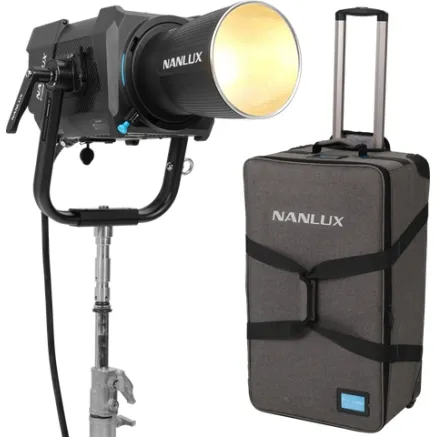

NANLUX EVOKE 2400B SPOT LIGHT IN FLIGHT CASE WITH 45 REFLECTOR EVOKE 2400B-KIT

Evoke 2400B Leading Lighting Innovation

Nanlux Leader in LED Lighting Innovations Nanlux consistently leads in innovation and improvements in film LED lighting. We have made significant strides by integrating 4KW HMI or 10 kW tungsten with a green to magenta adjustable range across the CCT spectrum. The Evoke 2400B features durable IP55 weather-resistant housings for both the light head and power supply, making it much lighter than other models with similar power. Introducing the new leader of the Evoke family, the Evoke 2400B.

Unmatched Lighting Power

• Output power 41,910 lux at 3M (with 45 reflector / 5600K).
• Nominal power 2400 W
• CCT range 2700K-6500K

With a nominal power of only 2400 W, the Evoke 2400B offers exceptional LED efficiency, providing stronger light output than a 4KW HMI or 10 kW tungsten fixture. Compared to traditional light sources, the Evoke 2400B offers advantages such as no preheating or cooling delay, flicker-free operation, 0.0-100.0 dimming, and adjustable color temperature. These features provide greater flexibility, ease of lighting setup, and save time during shooting sessions.

G/M 80, from cool to warm Traditional bi-color LED lights create the desired color temperature by mixing two different color temperature chip arrays. This approach has drawbacks, as the mid-range of the color temperature spectrum often appears slightly purple, while the extremes tend toward green. To address this, Nanlux has added a green and purple adjustment feature to the Evoke 2400B, ensuring consistent color temperature across the spectrum and resolving green and purple issues.

In addition to G/M automatic calibration, the Evoke 2400B features an industry-leading G/M adjustment function that offers an additional G/M80 uv range across the CCT spectrum. This feature provides creators with a new dimension of creativity, allowing them to match various light sources on set or other manufacturers light fixtures, simplifying the post-production process. It also helps to accurately adjust the image appearance, such as adding a purple tint to enhance skin tones or creating a specific atmosphere with green hues.

True and Real Color Rendering

• CRI average 96
• TLCI average 97
• TM-30 Rf average 95
• TM-30 Rg average 100
• SSI (3200K) 84
• SSI (5600K) 74

Nanlux has enhanced the color rendering capabilities of the Evoke 2400B in terms of reproduction, accuracy, and saturation, providing outstanding performance for technically demanding tasks.

Magnesium + IP55 Lightweight and Durable The Evoke 2400B continues to utilize the robust and durable metal construction characteristic of the Evoke model family, with both the lamp head and power supply rated IP55. Magnesium alloy is innovatively used for an ideal balance of durability and weight, resulting in a lighter housing than other fixtures with the same output power. Despite the IP55 rating and 2400 W power, the lamp head weighs only 15 kg/33 lbs, which is 25% less than a traditional HMI lamp of the same brightness. Compared to the Evoke 1200B, the nominal power has increased by 100%, but the Evoke 2400B power supply weighs only 1 kg/2.2 lbs more than the original. Its combination of lightness and durability makes it an essential tool in various production setups.

Complete and User-Friendly Control The fixture is equipped with four buttons, three knobs, and a 3.5-inch LCD screen, providing an intuitive and simple user interface for control. Brightness can be toggled from 0.0 to the currently set dimming position with a short press of a button. The Evoke 2400B brightness can be adjusted in 0.1 steps, allowing users to smoothly adjust the light from 0.0 to 100.0. Broader wired and wireless control methods meet various requirements in different production scenarios.

Wire Controller The Evoke 2400B features a wired controller port on the lamp head, allowing wired control communication via a wired controller (in development). This offers a convenient option for precise and reliable control.

DMX/RDM The fixture housing includes a 5-pin XLR DMX input and output port, supporting DMX/RDM control via wired connection to a lighting control console. This ensures stable communication and meets the needs of film and television production teams requiring precise and reliable group control in complex lighting systems.

Art-Net/sACN The Evoke 2400B is equipped with two LAN ports supporting Ethernet control based on the Art-Net/sACN protocol. This allows for greater signal transmission distances than traditional DMX cables and efficient multi-universe control.

NANLINK APP The Evoke 2400B can be controlled via the NANLINK wireless control system using built-in 2.4G and Bluetooth modules, providing fast and precise control via personal devices.

LumenRadio CRMX Using the LumenRadio TimoTwo module, the Evoke 2400B can transmit or receive CRMX signals, easily collaborating with other light fixtures.

Intelligent, Quiet Heat Dissipation The Evoke 2400B is equipped with a next-generation adjustable cooling system with four fan modes: SMART, FULL SPEED, LOW SPEED, and OFF. This meets various shooting and sound recording requirements, while in SMART mode, the noise level is only 29 dBA. This system focuses on both heat dissipation and noise suppression, benefiting all productions, especially interviews, by eliminating disruptive fan noise.

• In SMART mode, the fan speed automatically adjusts based on ambient temperature.
• FULL SPEED mode provides full power.
• LOW SPEED mode limits power to 50%.
• OFF mode limits output power to 15%.

Scope of Delivery

• Evoke 2400B 1
• Yoke 1
• Power Supply 1
• RF-NLM-45-EV2400 Reflector 45 1
• USB Drive 1
• AS-CP-QR-EV Quick Release Clamp 1
• CC-EV2400-FT Flight Case 1
• WS-RC-C2 Remote Control 1
• DC Connection Cable 7.5 m 1
• AC Cable 3 m 1
• User Manual 1
