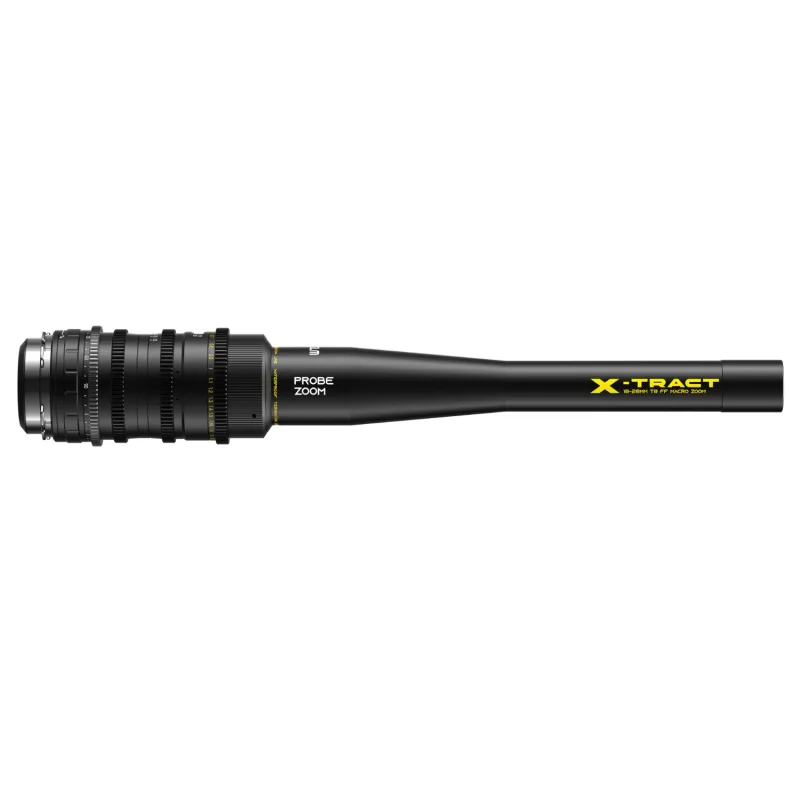

DZO Optics DZOFILM X-tract 18-28mm Metric T8 PL mount with hard case DZO-X1828A

Introducing the DZOFILM X-tract 18-28mm Metric T8 PL mount with hard case.

Key Features

Zoom Function

• Macro shooting with a zoom probe (18-28mm FF) for advertising/TVC, offering a field of view of 100-73, enhancing flexibility and reducing glare.
• Parfocal design maintains focus during zooming, mimicking the effect of traditional zooms.

Image Quality

• Constant T8 aperture with multi-layer anti-reflection coating for sharp images at full aperture.
• High-resolution quality with 6 low-dispersion lenses for accurate color restoration and reduced vignetting.

Stability and Durability

• IP57 rated: waterproof, dustproof, and fogproof, suitable for harsh environments.
• Constructed from aerospace-grade aluminum alloy for enhanced stability and durability.

Lightweight and Convenient

• Weighs only 1000g with a front diameter of <30mm, ideal for narrow spaces.
• Length controlled at about 400mm with a rear center of gravity design to minimize jitter.

Magnification and Focusing

• Maximum magnification of 2.11 with a close focusing distance of about 6mm.
• 300 focusing stroke for precise control, verified for 100,000 high-frequency lifespans.

Technical Features

• 7 high-refractive lenses improve transparency and color temperature, addressing yellowing issues.
• Full tooth ring M0.8 compatible with film and television industry standards.

Accessories and Design

• Self-developed OY-type support seat with quick-release options for easy accessory attachment.
• MO.8 stepless rotating ring for 360-degree shooting angles with scale marks for precision.

Usability Design

• Intuitive design with clear prompts for magnification, waterproofing, and rotation scale.
