Yamaha MG12XU Compact Mixer with USB Connectivity and Effects CMG12XUYEM

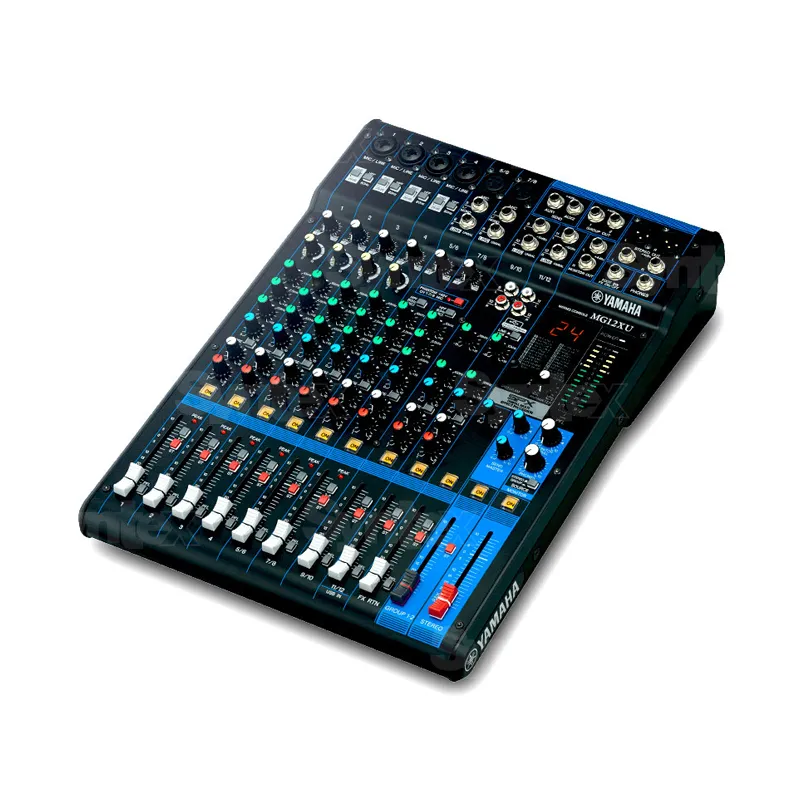

Yamaha MG12XU Mixer

The MG12XU from Yamaha is a compact mixer designed for up to twelve simultaneous inputs, perfect for performances, recordings, and lectures. It includes:

• Four mono mic/line combo input channels
• Two stereo line input channels (can also serve as mono inputs)
• Two stereo line inputs with 1/4 and RCA jacks
• USB connectivity for 24-bit / 192kHz audio

Channel Features

Channels 1-8 come with:

• D-PRE mic preamps
• 3-band EQ
• Pan control
• High pass filter
• 48V phantom power for dynamic and condenser mics
• 26dB attenuation switches for loud sources

Outputs and Monitoring

The MG12XU offers:

• XLR and TRS stereo outputs for PA systems
• 1/4 headphone output with level control
• TRS 1/4 stereo monitor outputs

Built-in Effects

It features a dedicated FX bus with:

• 24 effects presets including reverb, delay, and distortion
• FX return level control

Specifications

• Input Channels: 4x mono mic/line, 2x mono/stereo mic/line, 2x stereo line
• Output Channels: 2x stereo out, 1x monitor out, 1x headphone out
• Power Requirement: AC 100 - 240 V
• Dimensions: 12.1 x 4.6 x 16.6 inches
• Weight: 9.3 lb (4.2 kg)
